本文记录了CSAPP配套实验——Bomb Lab的详情WriteUp

  • 运行环境：

    • Ubuntu 20.04

任务

拆除"bomb"：通过反汇编，拆除bomb，以达到拆弹的目的。

知识储备

  • GDB调试器的使用

对于C/C++程序的调试，需要在编译前加上-g。

$g++ -g test.cpp -o test

接下来开启gdb调试器调试程序：

$gdb test

启用gdb进入交互模式后，可以用如下命令调试程序

  • 运行
Instruction Function
r(un) 运行程序，当遇到断点后，程序会在断点处停止运行，等待用户输入下一步的命令
c(ontinue) 继续执行，到下一个断点处（或运行结束）
n(ext) 单步跟踪程序，当遇到函数调用时，也不进入此函数体
s(tep) 单步调试如果有函数调用，则进入函数
until( lineNumber) 运行程序直到退出循环体，加行号可以直接运行到某行
finish 运行至当前函数完成返回，并打印函数返回时的堆栈地址和返回值及参数值等信息。
call function(params) 调用程序中可用函数，并传递参数，如对于 int sum(int a, int b)，可使用call sum(1, 2)
q(uit) 退出gdb调试器
b(reak ) 设置断点
info r 查看寄存器
p 输出变量
x 查看内容
set args 设置函数运行参数
  • 设置断点

WriteUp

​ 题目一共给了6个bombs，打开bomb.c查看部分源码，其实关键在于这几段

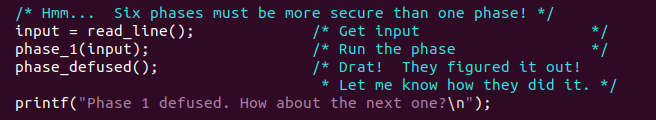

image-20210326172525304

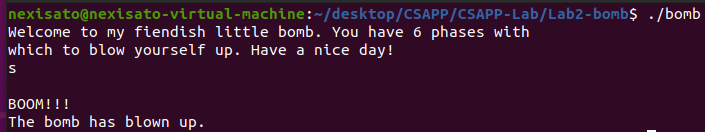

程序读取input字符串，如果输入正确的字符串，那么就拆解成功一个炸弹，否则你就会像下图一样被blown up

image-20210326173121180

先执行下面的指令得到程序的反汇编代码，然后我们进行愉快的拆解

$objdump -d bomb > bomb.asm

  • phase1

    在bomb.asm中找到phase_1()的汇编代码段如下：

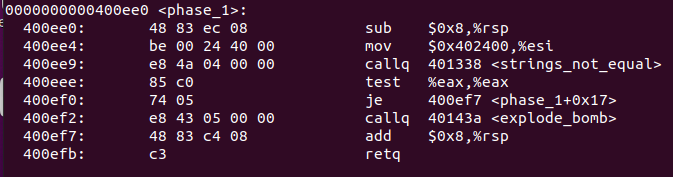

    image-20210326181958171

    这里关于寄存器的几点需要补充：

    • %rdi: 保存了函数入口的第一个参数
    • %rsi: 保存了函数入口的第二个参数
    • %rdx: 保存了函数入口的第三个参数
    • %rcx: 保存了函数入口的第四个参数
    • %rax：函数的返回值

    由此，要避免0x400ef2处触发explode_bomb，需要在上一行进行跳转，跳转条件**%eax值为0**（test是先进行与运算再设置PSW的，判断相等的条件为ZF==0），因此我们去strings_not_equal处的汇编代码查看

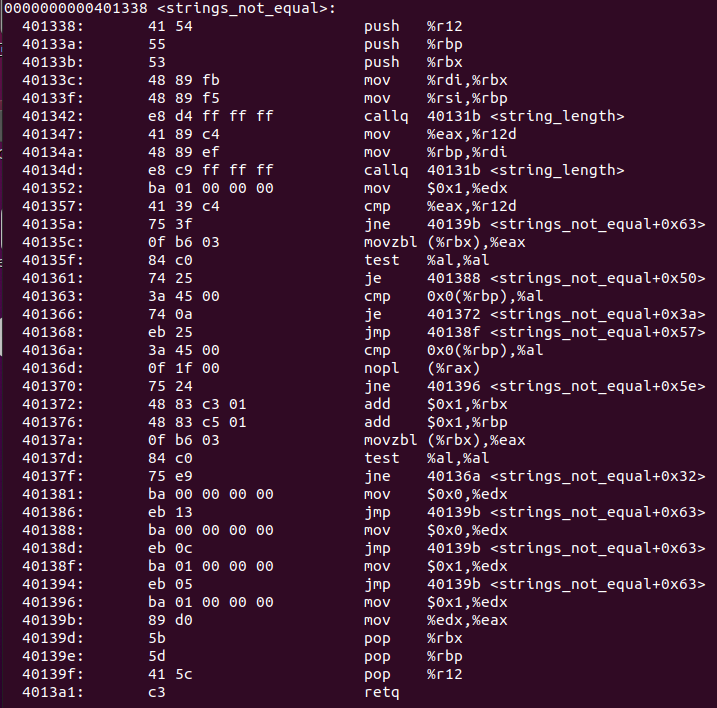

    image-20210326182825730

    输入参数为%rdi和%rsi，返回值为%rax，当两个输入存储的值不相等时，返回%eax值1，可以确定，%si存储了待比较的字符串，也就是bomb1的key，因此我们在该函数处设置断点，并以字符串的形式打印%si中的值

    $gdb bomb
(gdb)break strings_not_equal
(gdb)r
(gdb) p (char*)$rsi
$1 = 0x402400 "Border relations with Canada have never been better."
(gdb) p (char*)$rdi
$2 = 0x603780 <input_strings> "2333"

    因此，bomb1的key为：Border relations with Canada have never been better.

    image-20210326183755389

    bomb1拆除成功。

  • phase2

    phase_2()的汇编代码如下

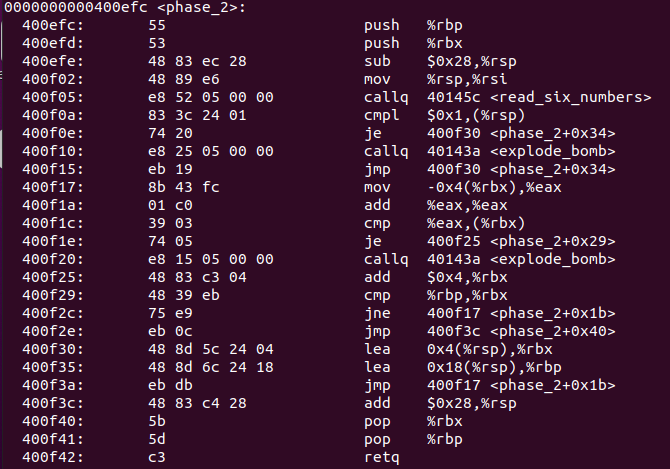

    image-20210326184232130

    这里不难看到phase_2()其实先利用read_six_numbers读入6个数，再逐个比较。数字比较部分的代码分析如下：

    注意：

    • %rsp生长方向为地址减小的方向，因此，对于存储在%rsp中的arr首地址，lea 0x4(%rsp), %rbx实际表示为%rbx = arr[i + 1]
    0000000000400efc <phase_2>:
  400efc:	55                   	push   %rbp
  400efd:	53                   	push   %rbx
  400efe:	48 83 ec 28          	sub    $0x28,%rsp         //开辟栈空间
  400f02:	48 89 e6             	mov    %rsp,%rsi		//%rsp实际上保存了数组的首地址，
  400f05:	e8 52 05 00 00       	callq  40145c <read_six_numbers>
  400f0a:	83 3c 24 01          	cmpl   $0x1,(%rsp)			//1. arr[0] = 1
  400f0e:	74 20                	je     400f30 <phase_2+0x34>
  400f10:	e8 25 05 00 00       	callq  40143a <explode_bomb>
  400f15:	eb 19                	jmp    400f30 <phase_2+0x34>
  400f17:	8b 43 fc             	mov    -0x4(%rbx),%eax		//4. %eax = arr[?-1]
  400f1a:	01 c0                	add    %eax,%eax			//5. %eax *= 2
  400f1c:	39 03                	cmp    %eax,(%rbx)			//6. if %eax == arr[?]
  400f1e:	74 05                	je     400f25 <phase_2+0x29>//
  400f20:	e8 15 05 00 00       	callq  40143a <explode_bomb>
  400f25:	48 83 c3 04          	add    $0x4,%rbx			//7. arr[?+1]
  400f29:	48 39 eb             	cmp    %rbp,%rbx			//8. arr[?] != arr[6],loop to 4
  400f2c:	75 e9                	jne    400f17 <phase_2+0x1b>
  400f2e:	eb 0c                	jmp    400f3c <phase_2+0x40>
  400f30:	48 8d 5c 24 04       	lea    0x4(%rsp),%rbx		//2. (%rbx) = arr[1]
  400f35:	48 8d 6c 24 18       	lea    0x18(%rsp),%rbp		//3. (%rbp) = arr[6]，0x18是十进制的24
  400f3a:	eb db                	jmp    400f17 <phase_2+0x1b>
  400f3c:	48 83 c4 28          	add    $0x28,%rsp
  400f40:	5b                   	pop    %rbx
  400f41:	5d                   	pop    %rbp
  400f42:	c3                   	retq

    根据对汇编代码的分析，可以得知代码的逻辑如下：

    if (arr[0] != 1)
	explode_bomb();
for (int i = 1; i <= 6; ++i) {
	int tmp = arr[i - 1] * 2;
	if (tmp != arr[i])
		explode_bomb();
}

    因此，phase_2()的key为首项为1，公比为2的等比数列的前6项：1 2 4 8 16 32

  • phase3

    先让我们看一下源码

    0000000000400f43 <phase_3>:
  400f43:	48 83 ec 18          	sub    $0x18,%rsp
  400f47:	48 8d 4c 24 0c       	lea    0xc(%rsp),%rcx
  400f4c:	48 8d 54 24 08       	lea    0x8(%rsp),%rdx
  400f51:	be cf 25 40 00       	mov    $0x4025cf,%esi
  400f56:	b8 00 00 00 00       	mov    $0x0,%eax
  400f5b:	e8 90 fc ff ff       	callq  400bf0 <__isoc99_sscanf@plt>	//sscanf返回读取到的item个数
  400f60:	83 f8 01             	cmp    $0x1,%eax
  400f63:	7f 05                	jg     400f6a <phase_3+0x27>
  400f65:	e8 d0 04 00 00       	callq  40143a <explode_bomb>
  400f6a:	83 7c 24 08 07       	cmpl   $0x7,0x8(%rsp)
  400f6f:	77 3c                	ja     400fad <phase_3+0x6a>	//num1>7,bomb()
  400f71:	8b 44 24 08          	mov    0x8(%rsp),%eax			//eax = num1
  400f75:	ff 24 c5 70 24 40 00 	jmpq   *0x402470(,%rax,8)		//(0x402470[8*num1])处的值
  400f7c:	b8 cf 00 00 00       	mov    $0xcf,%eax
  400f81:	eb 3b                	jmp    400fbe <phase_3+0x7b>
  400f83:	b8 c3 02 00 00       	mov    $0x2c3,%eax
  400f88:	eb 34                	jmp    400fbe <phase_3+0x7b>
  400f8a:	b8 00 01 00 00       	mov    $0x100,%eax
  400f8f:	eb 2d                	jmp    400fbe <phase_3+0x7b>
  400f91:	b8 85 01 00 00       	mov    $0x185,%eax
  400f96:	eb 26                	jmp    400fbe <phase_3+0x7b>
  400f98:	b8 ce 00 00 00       	mov    $0xce,%eax
  400f9d:	eb 1f                	jmp    400fbe <phase_3+0x7b>
  400f9f:	b8 aa 02 00 00       	mov    $0x2aa,%eax
  400fa4:	eb 18                	jmp    400fbe <phase_3+0x7b>
  400fa6:	b8 47 01 00 00       	mov    $0x147,%eax
  400fab:	eb 11                	jmp    400fbe <phase_3+0x7b>
  400fad:	e8 88 04 00 00       	callq  40143a <explode_bomb>
  400fb2:	b8 00 00 00 00       	mov    $0x0,%eax
  400fb7:	eb 05                	jmp    400fbe <phase_3+0x7b>
  400fb9:	b8 37 01 00 00       	mov    $0x137,%eax
  400fbe:	3b 44 24 0c          	cmp    0xc(%rsp),%eax
  400fc2:	74 05                	je     400fc9 <phase_3+0x86>
  400fc4:	e8 71 04 00 00       	callq  40143a <explode_bomb>
  400fc9:	48 83 c4 18          	add    $0x18,%rsp
  400fcd:	c3                   	retq

    源码中可以看到调用了sscanf库函数，该函数表示返回读入参数的个数，我们设置断点查看

    (gdb)break *0x400f60
---
phase_3():
INPUT:2 3 3 3
---
(gdb)info r eax
eax            0x2                 2

    因此phase_3()只读取两个参数，查看0x8(%rsp)和0xc(%rsp)

    Breakpoint 1, 0x0000000000400f60 in phase_3 ()
(gdb) x $sp
0x7fffffffdf00:	0x00402210
(gdb) x $rsp
0x7fffffffdf00:	0x00402210
(gdb) x $rsp+0x8
0x7fffffffdf08:	0x00000002
(gdb) x $rsp+0xc
0x7fffffffdf0c:	0x00000003

    分别放在0x8(%rsp)和0xc(%sp)（输入的参数入栈，最后一个在栈底0xc，高地址；第一个在栈顶，低地址0x8），我们假设两处输入的参数分别为num1和num2，且0<=num1<=7（ja只判定无符号数），num1被存储在%eax中，根据

    400f75:	ff 24 c5 70 24 40 00 	jmpq   *0x402470(,%rax,8)		//(0x402470[8*num1])处的值

    可知，根据输入不同的num1，需要跳转到不同的地址处，我们从0x402470开始连续打印8个地址（x64机器每个地址8个字节）

    (gdb) x/8xg 0x402470
0x402470:       0x0000000000400f7c      0x0000000000400fb9
0x402480:       0x0000000000400f83      0x0000000000400f8a
0x402490:       0x0000000000400f91      0x0000000000400f98
0x4024a0:       0x0000000000400f9f      0x0000000000400fa6

    所以根据num1=[0…7]，分别前往源码中不同的地址处对%eax赋值操作，跳转处标记在源码中

    400f7c:	b8 cf 00 00 00       	mov    $0xcf,%eax				//num1=0,eax=0xcf=207
400f81:	eb 3b                	jmp    400fbe <phase_3+0x7b>
400f83:	b8 c3 02 00 00       	mov    $0x2c3,%eax				//num1=2,eax=0x2c3=707
400f88:	eb 34                	jmp    400fbe <phase_3+0x7b>
400f8a:	b8 00 01 00 00       	mov    $0x100,%eax				//num1=3,eax=0x100=256
400f8f:	eb 2d                	jmp    400fbe <phase_3+0x7b>
400f91:	b8 85 01 00 00       	mov    $0x185,%eax				//num1=4,eax=0x185=389
400f96:	eb 26                	jmp    400fbe <phase_3+0x7b>
400f98:	b8 ce 00 00 00       	mov    $0xce,%eax				//num1=5,eax=0xce=206
400f9d:	eb 1f                	jmp    400fbe <phase_3+0x7b>
400f9f:	b8 aa 02 00 00       	mov    $0x2aa,%eax				//num1=6,eax=0x2aa=682
400fa4:	eb 18                	jmp    400fbe <phase_3+0x7b>
400fa6:	b8 47 01 00 00       	mov    $0x147,%eax				//num1=7,eax=0x147=327
400fab:	eb 11                	jmp    400fbe <phase_3+0x7b>
400fad:	e8 88 04 00 00       	callq  40143a <explode_bomb>
400fb2:	b8 00 00 00 00       	mov    $0x0,%eax
400fb7:	eb 05                	jmp    400fbe <phase_3+0x7b>
400fb9:	b8 37 01 00 00       	mov    $0x137,%eax			//num1=1,eax=0x137=311
400fbe:	3b 44 24 0c          	cmp    0xc(%rsp),%eax		//num2 == eax? (defused()) : bomb
400fc2:	74 05                	je     400fc9 <phase_3+0x86>
400fc4:	e8 71 04 00 00       	callq  40143a <explode_bomb>

    因此，phase_3()的key：num1 num2，对应以下8组中任意一组即可：

    num1 num2
    0 207
    1 311
    2 707
    3 256
    4 389
    5 206
    6 682
    7 327

  • phase4

    000000000040100c <phase_4>:
  40100c:	48 83 ec 18          	sub    $0x18,%rsp
  401010:	48 8d 4c 24 0c       	lea    0xc(%rsp),%rcx	%rcx=num2
  401015:	48 8d 54 24 08       	lea    0x8(%rsp),%rdx
  40101a:	be cf 25 40 00       	mov    $0x4025cf,%esi
  40101f:	b8 00 00 00 00       	mov    $0x0,%eax
  401024:	e8 c7 fb ff ff       	callq  400bf0 <__isoc99_sscanf@plt>
  401029:	83 f8 02             	cmp    $0x2,%eax
  40102c:	75 07                	jne    401035 <phase_4+0x29>
  40102e:	83 7c 24 08 0e       	cmpl   $0xe,0x8(%rsp)
  401033:	76 05                	jbe    40103a <phase_4+0x2e>	//num1 <= 0xe(14)
  401035:	e8 00 04 00 00       	callq  40143a <explode_bomb>
  40103a:	ba 0e 00 00 00       	mov    $0xe,%edx			//edx = 14
  40103f:	be 00 00 00 00       	mov    $0x0,%esi			//esi = 0
  401044:	8b 7c 24 08          	mov    0x8(%rsp),%edi		//edi = num1
  401048:	e8 81 ff ff ff       	callq  400fce <func4>
  40104d:	85 c0                	test   %eax,%eax
  40104f:	75 07                	jne    401058 <phase_4+0x4c>
  401051:	83 7c 24 0c 00       	cmpl   $0x0,0xc(%rsp)
  401056:	74 05                	je     40105d <phase_4+0x51>
  401058:	e8 dd 03 00 00       	callq  40143a <explode_bomb>
  40105d:	48 83 c4 18          	add    $0x18,%rsp
  401061:	c3                   	retq

    依然是读入两个参数num1(0x8(%rsp))和num2(0xc(%rsp))，且由跳转函数可以得到0<=num1<=14，经过了三个寄存器的赋值以后，函数跳转到fun4，不过在这之前我们可以看到，在后续的汇编代码中，需要满足%eax = 0和num2=0两个条件。以下是func4的汇编代码：

    0000000000400fce <func4>://已知的参数:%edx=14,%esi=0,%edi=num1
  400fce:	48 83 ec 08          	sub    $0x8,%rsp
  400fd2:	89 d0                	mov    %edx,%eax	//%eax=14
  400fd4:	29 f0                	sub    %esi,%eax	//%eax -= (%esi)
  400fd6:	89 c1                	mov    %eax,%ecx	//%ecx=%eax
  400fd8:	c1 e9 1f             	shr    $0x1f,%ecx	//取%ecx的符号位
  400fdb:	01 c8                	add    %ecx,%eax	//%eax += %ecx
  400fdd:	d1 f8                	sar    %eax
  400fdf:	8d 0c 30             	lea    (%rax,%rsi,1),%ecx
  400fe2:	39 f9                	cmp    %edi,%ecx	//num1 >= %ecx
  400fe4:	7e 0c                	jle    400ff2 <func4+0x24>
  400fe6:	8d 51 ff             	lea    -0x1(%rcx),%edx	%edx=%rcx-1
  400fe9:	e8 e0 ff ff ff       	callq  400fce <func4>
  400fee:	01 c0                	add    %eax,%eax		%eax*=2
  400ff0:	eb 15                	jmp    401007 <func4+0x39>//done
  400ff2:	b8 00 00 00 00       	mov    $0x0,%eax	//%eax=0
  400ff7:	39 f9                	cmp    %edi,%ecx	//num1<=%ecx，done
  400ff9:	7d 0c                	jge    401007 <func4+0x39>
  400ffb:	8d 71 01             	lea    0x1(%rcx),%esi	//%esi=%rcx+1
  400ffe:	e8 cb ff ff ff       	callq  400fce <func4>
  401003:	8d 44 00 01          	lea    0x1(%rax,%rax,1),%eax
  401007:	48 83 c4 08          	add    $0x8,%rsp
  40100b:	c3                   	retq

    注：类似于 cmp %edi,%ecx jle 400ff2 <func4+0x24>；跳转语句的主语是dst，如左边这句表示，compare %edi : %ecx，若 %ecx <=(lower or equal) %edi，则jump到0x400ff2处

    分析两次跳转条件，可以得到%ecx=num1，即可返回%eax=0，汇编代码里面用了比较多的递归，为了方便计算我们画出算法流程图后写个测试函数看看num1应该是多少：

    #include <stdio.h>

int fun4(int dx, int si, int di) {
   int ax = dx - si;
   int cx = (unsigned)ax >> 31;
   ax = (ax + cx) >> 1;
   cx = ax + si;
   if (di >= cx) {
      ax = 0;
      if (di <= cx) {
         return ax;
      }
      else {
         si = cx + 1;
         ax = fun4(dx, si, di);
         return 2*ax + 1;
      }
   }
   else {
      dx = cx - 1;
      ax = fun4(dx, si, di);
      return 2 * ax;
   }
}
int main() {
   for (int num1 = 0; num1 <= 14; ++num1)
      if (fun4(14, 0, num1) == 0)
         printf("%d\n", num1);

   return 0;
}
----运行结果----
0
1
3
7

    所以**phase_4()**的key为如下4组中的任意一组即可：

    0 0

    1 0

    3 0

    7 0

  • phase5

    反汇编代码如下：

    0000000000401062 <phase_5>:
  401062:	53                   	push   %rbx
  401063:	48 83 ec 20          	sub    $0x20,%rsp
  401067:	48 89 fb             	mov    %rdi,%rbx
  40106a:	64 48 8b 04 25 28 00 	mov    %fs:0x28,%rax
  401071:	00 00
  401073:	48 89 44 24 18       	mov    %rax,0x18(%rsp)
  401078:	31 c0                	xor    %eax,%eax
  40107a:	e8 9c 02 00 00       	callq  40131b <string_length>
  40107f:	83 f8 06             	cmp    $0x6,%eax
  401082:	74 4e                	je     4010d2 <phase_5+0x70>
  401084:	e8 b1 03 00 00       	callq  40143a <explode_bomb>
  401089:	eb 47                	jmp    4010d2 <phase_5+0x70>
  40108b:	0f b6 0c 03          	movzbl (%rbx,%rax,1),%ecx
  40108f:	88 0c 24             	mov    %cl,(%rsp)
  401092:	48 8b 14 24          	mov    (%rsp),%rdx
  401096:	83 e2 0f             	and    $0xf,%edx
  401099:	0f b6 92 b0 24 40 00 	movzbl 0x4024b0(%rdx),%edx
  4010a0:	88 54 04 10          	mov    %dl,0x10(%rsp,%rax,1)
  4010a4:	48 83 c0 01          	add    $0x1,%rax
  4010a8:	48 83 f8 06          	cmp    $0x6,%rax
  4010ac:	75 dd                	jne    40108b <phase_5+0x29>
  4010ae:	c6 44 24 16 00       	movb   $0x0,0x16(%rsp)
  4010b3:	be 5e 24 40 00       	mov    $0x40245e,%esi
  4010b8:	48 8d 7c 24 10       	lea    0x10(%rsp),%rdi
  4010bd:	e8 76 02 00 00       	callq  401338 <strings_not_equal>
  4010c2:	85 c0                	test   %eax,%eax
  4010c4:	74 13                	je     4010d9 <phase_5+0x77>
  4010c6:	e8 6f 03 00 00       	callq  40143a <explode_bomb>
  4010cb:	0f 1f 44 00 00       	nopl   0x0(%rax,%rax,1)
  4010d0:	eb 07                	jmp    4010d9 <phase_5+0x77>
  4010d2:	b8 00 00 00 00       	mov    $0x0,%eax
  4010d7:	eb b2                	jmp    40108b <phase_5+0x29>
  4010d9:	48 8b 44 24 18       	mov    0x18(%rsp),%rax
  4010de:	64 48 33 04 25 28 00 	xor    %fs:0x28,%rax
  4010e5:	00 00
  4010e7:	74 05                	je     4010ee <phase_5+0x8c>
  4010e9:	e8 42 fa ff ff       	callq  400b30 <__stack_chk_fail@plt>
  4010ee:	48 83 c4 20          	add    $0x20,%rsp
  4010f2:	5b                   	pop    %rbx
  4010f3:	c3                   	retq

    从0x40107f处可以看到，phase5需要我们输入长度为6的字符串，我们先输入长度为6的字符串，并在0x40108b处设置断点，可以看到

    (gdb) p (char*)$rbx
$2 = 0x6038c0 <input_strings+320> "abcdef"

    %rbx存储了我们输入字符串的首地址，可以看到0x4010ac处之前是在sp中存储这6位字符，然后直到0x4010bd处比较字符串。这样我们其实可以直接查询%rsi存储的地址处的字符串

    (gdb) p (char*)$esi
$5 = 0x40245e "flyers"

    这就结束了？**不！**这不只是简单比较一下字符串就行，此前对输入的字符串进行了转换映射。我们将如下的汇编代码用高级语言改写：

    40108b:	0f b6 0c 03          	movzbl (%rbx,%rax,1),%ecx
40108f:	88 0c 24             	mov    %cl,(%rsp)
401092:	48 8b 14 24          	mov    (%rsp),%rdx
401096:	83 e2 0f             	and    $0xf,%edx
401099:	0f b6 92 b0 24 40 00 	movzbl 0x4024b0(%rdx),%edx
4010a0:	88 54 04 10          	mov    %dl,0x10(%rsp,%rax,1)
4010a4:	48 83 c0 01          	add    $0x1,%rax
4010a8:	48 83 f8 06          	cmp    $0x6,%rax
4010ac:	75 dd                	jne    40108b <phase_5+0x29>
------
%rbx：我们输入的字符，设定为 inputs[i]，经过与0x4024b0的字符运算后存储在0x10(%rsp)处
0x4024b0：事先存储的字符，设定为arr[i]
 int sp[6];
 for (int i = 0; i < 6; ++i)
    sp[i] = arr[inputs[i] & 0xf];
------

    对于任意一个数num，有num&0xf<=0xf，因此我们可以查看0x4024b0处开始的16个字符

    image-20210329113622421

    可以得到

    int arr[16] = {'m', 'a', 'd', 'u', 'i', 'e', 'r', 's', 'n', 'f', 'o',' t', 'v', 'b', 'y', 'l'};

    最终0x10(%rsp)处的字符（也即sp[]）被映射到%rdi处，%rsi处的字符为

    image-20210329113943236

    所以只需要找到合适的inputs，并作映射sp[i]=arr[inputs[i]&0xf]，使得string(sp)=="flyers" ，写个测试函数找一找：

        string arr = "maduiersnfotvbyl";
    string si = "flyers";
    for (int i = 0; i < 6; ++i) {
        cout << si[i] << ": ";
        for (int k = 0; k < 128; k++)
            if (arr[int(k & 0xf)] == si[i])
                cout << (char)k;
        cout << endl;
    }
----
f: )9IYiy
l: /?O_o
y: .>N^n~
e: %5EUeu
r: &6FVfv
s: '7GWgw

    以上6行字符的任意排列组合均可拆除phase5()

    其实这里有个彩蛋，Ctrl+C可以直接拆弹，这是我没想到的2333

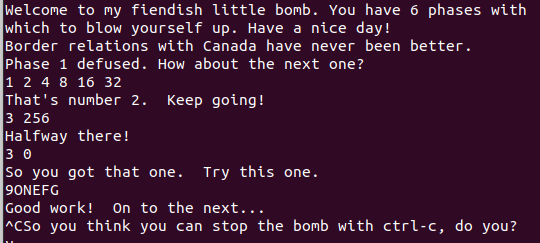

    image-20210329130013620

  • phase6

    激动人心的时刻，终于来到最后一个phase了，让我们继续看一下源码

    00000000004010f4 <phase_6>:
  4010f4:	41 56                	push   %r14
  4010f6:	41 55                	push   %r13
  4010f8:	41 54                	push   %r12
  4010fa:	55                   	push   %rbp
  4010fb:	53                   	push   %rbx
  4010fc:	48 83 ec 50          	sub    $0x50,%rsp
  401100:	49 89 e5             	mov    %rsp,%r13
  401103:	48 89 e6             	mov    %rsp,%rsi
  401106:	e8 51 03 00 00       	callq  40145c <read_six_numbers>
  40110b:	49 89 e6             	mov    %rsp,%r14
  40110e:	41 bc 00 00 00 00    	mov    $0x0,%r12d
  401114:	4c 89 ed             	mov    %r13,%rbp
  401117:	41 8b 45 00          	mov    0x0(%r13),%eax
  40111b:	83 e8 01             	sub    $0x1,%eax
  40111e:	83 f8 05             	cmp    $0x5,%eax
  401121:	76 05                	jbe    401128 <phase_6+0x34>
  401123:	e8 12 03 00 00       	callq  40143a <explode_bomb>
  401128:	41 83 c4 01          	add    $0x1,%r12d
  40112c:	41 83 fc 06          	cmp    $0x6,%r12d
  401130:	74 21                	je     401153 <phase_6+0x5f>
  401132:	44 89 e3             	mov    %r12d,%ebx
  401135:	48 63 c3             	movslq %ebx,%rax
  401138:	8b 04 84             	mov    (%rsp,%rax,4),%eax
  40113b:	39 45 00             	cmp    %eax,0x0(%rbp)
  40113e:	75 05                	jne    401145 <phase_6+0x51>
  401140:	e8 f5 02 00 00       	callq  40143a <explode_bomb>
  401145:	83 c3 01             	add    $0x1,%ebx
  401148:	83 fb 05             	cmp    $0x5,%ebx
  40114b:	7e e8                	jle    401135 <phase_6+0x41>
  40114d:	49 83 c5 04          	add    $0x4,%r13
  401151:	eb c1                	jmp    401114 <phase_6+0x20>
  401153:	48 8d 74 24 18       	lea    0x18(%rsp),%rsi
  401158:	4c 89 f0             	mov    %r14,%rax
  40115b:	b9 07 00 00 00       	mov    $0x7,%ecx
  401160:	89 ca                	mov    %ecx,%edx
  401162:	2b 10                	sub    (%rax),%edx
  401164:	89 10                	mov    %edx,(%rax)
  401166:	48 83 c0 04          	add    $0x4,%rax
  40116a:	48 39 f0             	cmp    %rsi,%rax
  40116d:	75 f1                	jne    401160 <phase_6+0x6c>
  40116f:	be 00 00 00 00       	mov    $0x0,%esi
  401174:	eb 21                	jmp    401197 <phase_6+0xa3>
  401176:	48 8b 52 08          	mov    0x8(%rdx),%rdx
  40117a:	83 c0 01             	add    $0x1,%eax
  40117d:	39 c8                	cmp    %ecx,%eax
  40117f:	75 f5                	jne    401176 <phase_6+0x82>
  401181:	eb 05                	jmp    401188 <phase_6+0x94>
  401183:	ba d0 32 60 00       	mov    $0x6032d0,%edx
  401188:	48 89 54 74 20       	mov    %rdx,0x20(%rsp,%rsi,2)
  40118d:	48 83 c6 04          	add    $0x4,%rsi
  401191:	48 83 fe 18          	cmp    $0x18,%rsi
  401195:	74 14                	je     4011ab <phase_6+0xb7>
  401197:	8b 0c 34             	mov    (%rsp,%rsi,1),%ecx
  40119a:	83 f9 01             	cmp    $0x1,%ecx
  40119d:	7e e4                	jle    401183 <phase_6+0x8f>
  40119f:	b8 01 00 00 00       	mov    $0x1,%eax
  4011a4:	ba d0 32 60 00       	mov    $0x6032d0,%edx
  4011a9:	eb cb                	jmp    401176 <phase_6+0x82>
  4011ab:	48 8b 5c 24 20       	mov    0x20(%rsp),%rbx
  4011b0:	48 8d 44 24 28       	lea    0x28(%rsp),%rax
  4011b5:	48 8d 74 24 50       	lea    0x50(%rsp),%rsi
  4011ba:	48 89 d9             	mov    %rbx,%rcx
  4011bd:	48 8b 10             	mov    (%rax),%rdx
  4011c0:	48 89 51 08          	mov    %rdx,0x8(%rcx)
  4011c4:	48 83 c0 08          	add    $0x8,%rax
  4011c8:	48 39 f0             	cmp    %rsi,%rax
  4011cb:	74 05                	je     4011d2 <phase_6+0xde>
  4011cd:	48 89 d1             	mov    %rdx,%rcx
  4011d0:	eb eb                	jmp    4011bd <phase_6+0xc9>
  4011d2:	48 c7 42 08 00 00 00 	movq   $0x0,0x8(%rdx)
  4011d9:	00
  4011da:	bd 05 00 00 00       	mov    $0x5,%ebp
  4011df:	48 8b 43 08          	mov    0x8(%rbx),%rax
  4011e3:	8b 00                	mov    (%rax),%eax
  4011e5:	39 03                	cmp    %eax,(%rbx)
  4011e7:	7d 05                	jge    4011ee <phase_6+0xfa>
  4011e9:	e8 4c 02 00 00       	callq  40143a <explode_bomb>
  4011ee:	48 8b 5b 08          	mov    0x8(%rbx),%rbx
  4011f2:	83 ed 01             	sub    $0x1,%ebp
  4011f5:	75 e8                	jne    4011df <phase_6+0xeb>
  4011f7:	48 83 c4 50          	add    $0x50,%rsp
  4011fb:	5b                   	pop    %rbx
  4011fc:	5d                   	pop    %rbp
  4011fd:	41 5c                	pop    %r12
  4011ff:	41 5d                	pop    %r13
  401201:	41 5e                	pop    %r14
  401203:	c3                   	retq

    比以往的长了很多，不过从输入处我们还是可以看到，此phase依然是读入6个数，我们逐段分析一下

    40110b:	49 89 e6             	mov    %rsp,%r14
40110e:	41 bc 00 00 00 00    	mov    $0x0,%r12d
401114:	4c 89 ed             	mov    %r13,%rbp
401117:	41 8b 45 00          	mov    0x0(%r13),%eax
40111b:	83 e8 01             	sub    $0x1,%eax
40111e:	83 f8 05             	cmp    $0x5,%eax
401121:	76 05                	jbe    401128 <phase_6+0x34>

​ 可以得到以下信息

  • 输入的6个数字保存在%rsp、%rbp、%r13、%r14中，且存储的均为数组的首地址，我们假设该数组为arr[]

  • arr[0]-1<=5

    继续往下看到0x401153

      401114:	4c 89 ed             	mov    %r13,%rbp

  401117:	41 8b 45 00          	mov    0x0(%r13),%eax
  40111b:	83 e8 01             	sub    $0x1,%eax
  40111e:	83 f8 05             	cmp    $0x5,%eax
  401121:	76 05                	jbe    401128 <phase_6+0x34>
  401123:	e8 12 03 00 00       	callq  40143a <explode_bomb>

  401128:	41 83 c4 01          	add    $0x1,%r12d
  40112c:	41 83 fc 06          	cmp    $0x6,%r12d
  401130:	74 21                	je     401153 <phase_6+0x5f>
  401132:	44 89 e3             	mov    %r12d,%ebx

  401135:	48 63 c3             	movslq %ebx,%rax
  401138:	8b 04 84             	mov    (%rsp,%rax,4),%eax
  40113b:	39 45 00             	cmp    %eax,0x0(%rbp)
  40113e:	75 05                	jne    401145 <phase_6+0x51>
  401140:	e8 f5 02 00 00       	callq  40143a <explode_bomb>

  401145:	83 c3 01             	add    $0x1,%ebx
  401148:	83 fb 05             	cmp    $0x5,%ebx
  40114b:	7e e8                	jle    401135 <phase_6+0x41>
40114d:	49 83 c5 04          	add    $0x4,%r13
  401151:	eb c1                	jmp    401114 <phase_6+0x20>

  401153:	48 8d 74 24 18       	lea    0x18(%rsp),%rsi
  ------
  大意如下：
  for (int i = 0; i < 6; ++i) {
  	if (arr[i] > 6)
  		bomb();
  	for (int j = i + 1; j < 6; ++j)
  		if (arr[j] == arr[i])
  			bomb();
  }
  ------

    (这一段挺麻烦的orz…整个phase6我看了整整一天)，总之上一段程序可以得到如下结论

    • 输入的6个数字互不相等且不超过6

    继续往下分析：

    401153:	48 8d 74 24 18       	lea    0x18(%rsp),%rsi	//si=arr.end()
401158:	4c 89 f0             	mov    %r14,%rax
40115b:	b9 07 00 00 00       	mov    $0x7,%ecx
401160:	89 ca                	mov    %ecx,%edx
401162:	2b 10                	sub    (%rax),%edx
401164:	89 10                	mov    %edx,(%rax)	//arr[i] = 7 - arr[i]
401166:	48 83 c0 04          	add    $0x4,%rax
40116a:	48 39 f0             	cmp    %rsi,%rax
40116d:	75 f1                	jne    401160 <phase_6+0x6c>
------
for (int i = 0; i < 6; ++i)
	arr[i] = 7 - arr[i];
------

    继续往下看

    40116f:	be 00 00 00 00       	mov    $0x0,%esi
401174:	eb 21                	jmp    401197 <phase_6+0xa3>

401176:	48 8b 52 08          	mov    0x8(%rdx),%rdx
40117a:	83 c0 01             	add    $0x1,%eax
40117d:	39 c8                	cmp    %ecx,%eax
40117f:	75 f5                	jne    401176 <phase_6+0x82>
401181:	eb 05                	jmp    401188 <phase_6+0x94>

401183:	ba d0 32 60 00       	mov    $0x6032d0,%edx
401188:	48 89 54 74 20       	mov    %rdx,0x20(%rsp,%rsi,2)
40118d:	48 83 c6 04          	add    $0x4,%rsi
401191:	48 83 fe 18          	cmp    $0x18,%rsi
401195:	74 14                	je     4011ab <phase_6+0xb7>

401197:	8b 0c 34             	mov    (%rsp,%rsi,1),%ecx
40119a:	83 f9 01             	cmp    $0x1,%ecx
40119d:	7e e4                	jle    401183 <phase_6+0x8f>
40119f:	b8 01 00 00 00       	mov    $0x1,%eax
4011a4:	ba d0 32 60 00       	mov    $0x6032d0,%edx
4011a9:	eb cb                	jmp    401176 <phase_6+0x82>

4011ab:	48 8b 5c 24 20       	mov    0x20(%rsp),%rbx
------ 新建数组，narr，首地址为0x20(%rsp)
for (int i = 0; i < 6; ++i) {
	int count = arr[i];
	int address = 0x6032d0;
	for (int j = 1; j < count; ++j)
		address = *(address) + 0x8;
	*(%rsp + 2*%rsi + 0x20) = address;

}
------

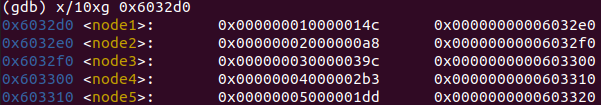

    从而新数组narr的首地址为%rsp+0x20，结束地址(narr.end())为%rsp+0x50（一个数据为一个地址，占据8个字节），输出一下0x6032d0处存储的地址值

    image-20210331111938939

继续往下分析汇编代码(终于快结束了orz…)

4011ab:	48 8b 5c 24 20       	mov    0x20(%rsp),%rbx
4011b0:	48 8d 44 24 28       	lea    0x28(%rsp),%rax
4011b5:	48 8d 74 24 50       	lea    0x50(%rsp),%rsi
4011ba:	48 89 d9             	mov    %rbx,%rcx

4011bd:	48 8b 10             	mov    (%rax),%rdx
4011c0:	48 89 51 08          	mov    %rdx,0x8(%rcx)
4011c4:	48 83 c0 08          	add    $0x8,%rax
4011c8:	48 39 f0             	cmp    %rsi,%rax
4011cb:	74 05                	je     4011d2 <phase_6+0xde>
4011cd:	48 89 d1             	mov    %rdx,%rcx
4011d0:	eb eb                	jmp    4011bd <phase_6+0xc9>

4011d2:	48 c7 42 08 00 00 00 	movq   $0x0,0x8(%rdx)
------
for (int i = 1; i < 6; ++i) {
	*(narr[i - 1] + 0x8) = narr[i];
}
------

最后的代码：

4011d2:	48 c7 42 08 00 00 00 	movq   $0x0,0x8(%rdx)
4011d9:	00
4011da:	bd 05 00 00 00       	mov    $0x5,%ebp

4011df:	48 8b 43 08          	mov    0x8(%rbx),%rax
4011e3:	8b 00                	mov    (%rax),%eax
4011e5:	39 03                	cmp    %eax,(%rbx)
4011e7:	7d 05                	jge    4011ee <phase_6+0xfa>
4011e9:	e8 4c 02 00 00       	callq  40143a <explode_bomb>

4011ee:	48 8b 5b 08          	mov    0x8(%rbx),%rbx
4011f2:	83 ed 01             	sub    $0x1,%ebp
4011f5:	75 e8                	jne    4011df <phase_6+0xeb>
------
for (int i = 1; i < 6; ++i) {
	if (*narr[i - 1] < *narr[i])
		bomb();
}
------

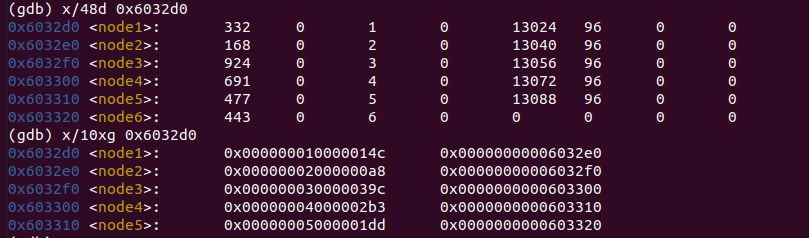

继续回顾一下0x6032d0处的取值

image-20210331114704652

总结前面的汇编代码我们可以得出：

  • narr[1…6]存储{0x6032d0, 0x6032e0, 0x6032f0, 0x0x603300, 0x603310, 0x603320}这几个地址
  • 这几个地址处存储的整数值，满足逆序排序的关系，即*(narr[i - 1]) >= *(narr[i])
  • narr[i]由7-arr[i]映射而来

满足*(narr[i - 1] >= *(narr[i]))的数组顺序为

3			4			5			6			1			2
0x6032f0	0x603300	0x603310	0x603320	0x6032d0	0x6032e0
924			691			477			443			332			168

由于第一行的对应下标为7-arr[i]得来的（为什么不是0开头呢？因为变换前后都要满足0<=arr[i]<=6，所以准确来说arr[i]>=1），因此arr[i]，也就是phase6的key为

4 3 2 1 6 5

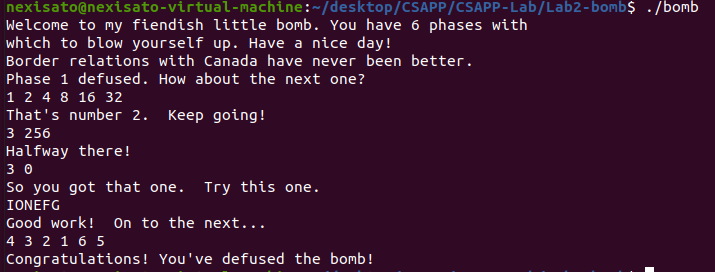

image-20210331122034081

至此，bomblab就全部完成了。当然还有一个彩蛋关，如果各位时间充裕的话可以尝试一下，这里就挖个坑（可能不会填）。这个lab确实花费了我蛮长的准备时间，以及中间做的时候翻了好多别人的博客（有能力的话建议独立解决），从gdb调试器的用法到简单汇编代码的拆分和阅读，确实是一个不错的练习机会。

参考

https://zhuanlan.zhihu.com/p/57977157

https://zhuanlan.zhihu.com/p/104130161

https://github.com/luy-0/CS-APP-LABs/blob/master/Lab-Answer_HB/Lab2-BombLab/L2-Bomb-Note.md
